Machinery » MH Series Handler System

Handler SystemMoyle Engineering Ltd has introduced the MH4000 & 5000 series handling machine - capable of handling precast concrete moulds specifically produced by Moyle. Using the latest technology available in hydraulic and electronic control, operators will enjoy a comfortable and safe working environment.

Features:

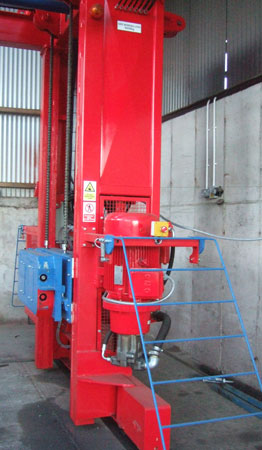

• Variable piston hydraulic pump – A much more responsive and quieter unit than conventional gear pumps. With its load sensing capabilities, if the machine is idle, then so is the pump – increasing pump life and much more energy efficient.

• Large hydraulic flow rate – More oil, more speed.

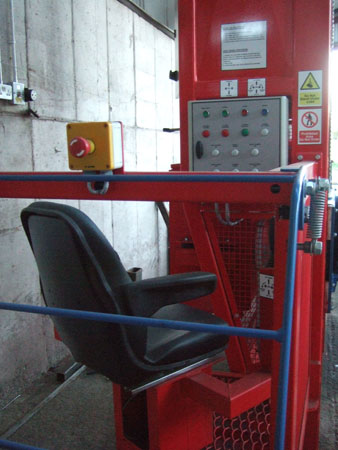

• Proportional Hydraulic Control – This type of control isusually found in modern excavators, but Moyle decided that a machine used all day should benefit from the comfort of using electronic joysticks – smooth response, soft movements, all controls via only two joysticks.

• PLC controlled safety – All movements are monitored via a programmable logic controller (PLC). Actions that can jeopardize the health and safety of employees are therefore greatly reduced. Machine functions can also be tailored to suit each customers needs – speed and performance.

• Robustness – Construction of the MH4000 & 5000 series emphasizes strength and durability. With a S.W.L of 4000 Kg & 6000 Kg respectively, many variations of precast mould can be handled – from small wall copings to large cattle slat products. Casting length is 4 or 5 meters. Stacking height is 3m, enabling the customer to maximize floor space within a building.

• Low Maintenance – Moyle has opted to use superior components in the MH4000 & 5000 construction. All parts are of the highest standard, therefore reducing the likelihood of down time – time is money.

The MH4000 & 5000 series can be supplied with any mouldage requirements for the precast industry – made to exact customer specifications. Other options like mould filling and vibration can be offered on request.

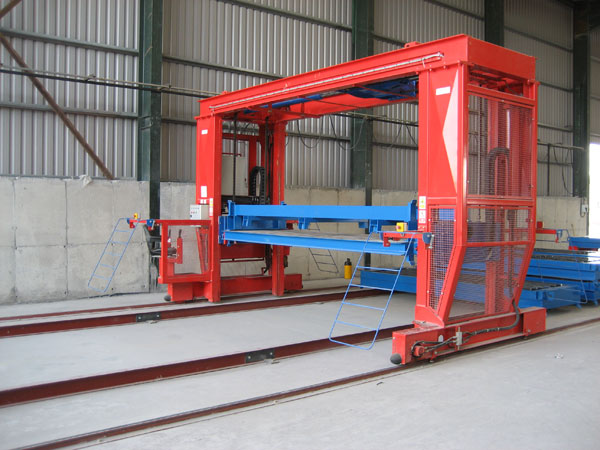

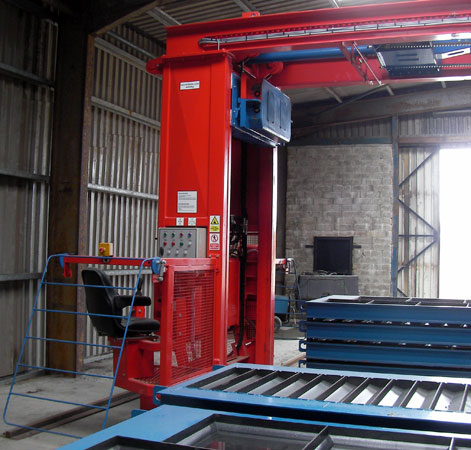

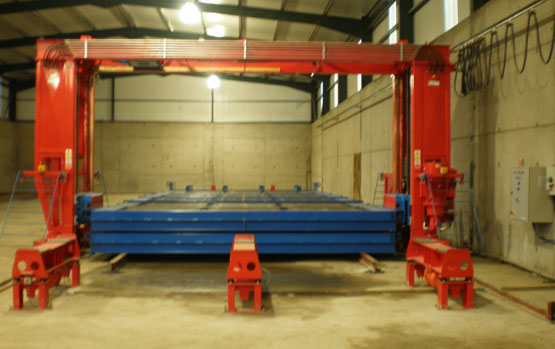

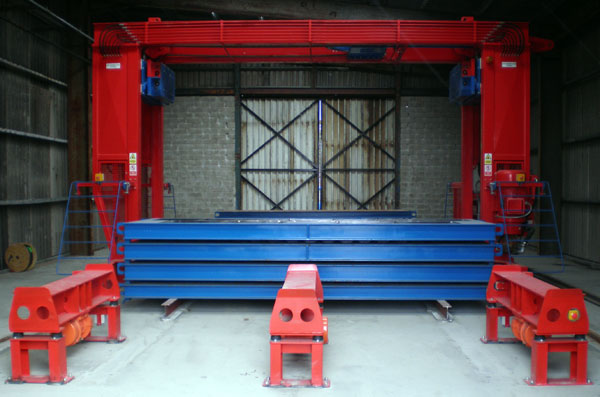

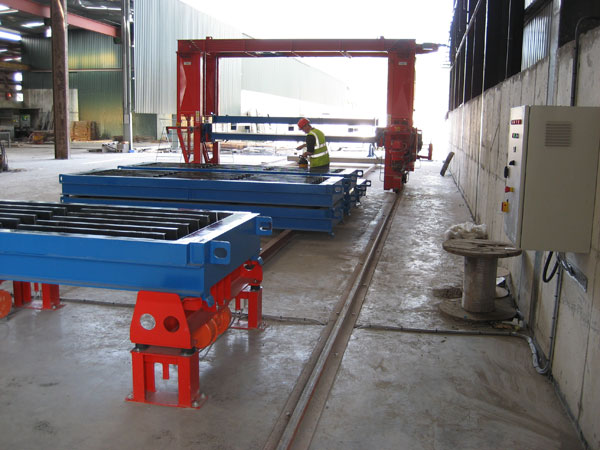

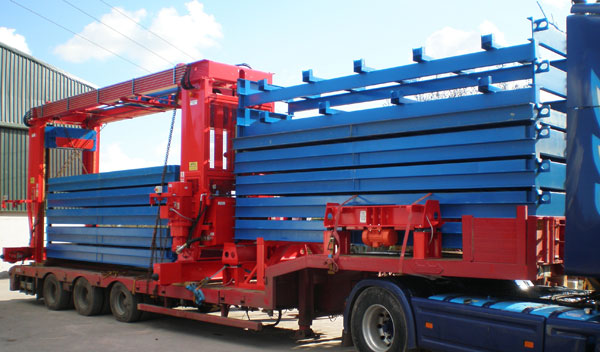

Click each image to see a zoomed version:

Handler System
Handler System
Handler System
Handler System
Handler System
Handler System
Handler System
Handler System
